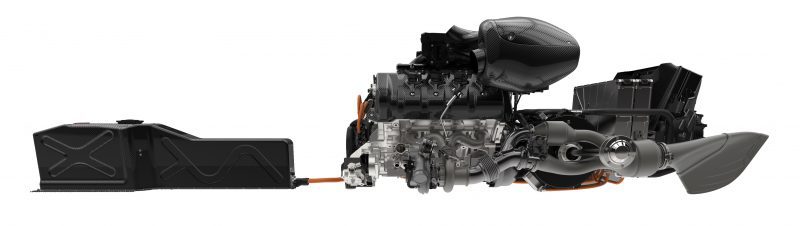

Powertrain
TRANSMISSION

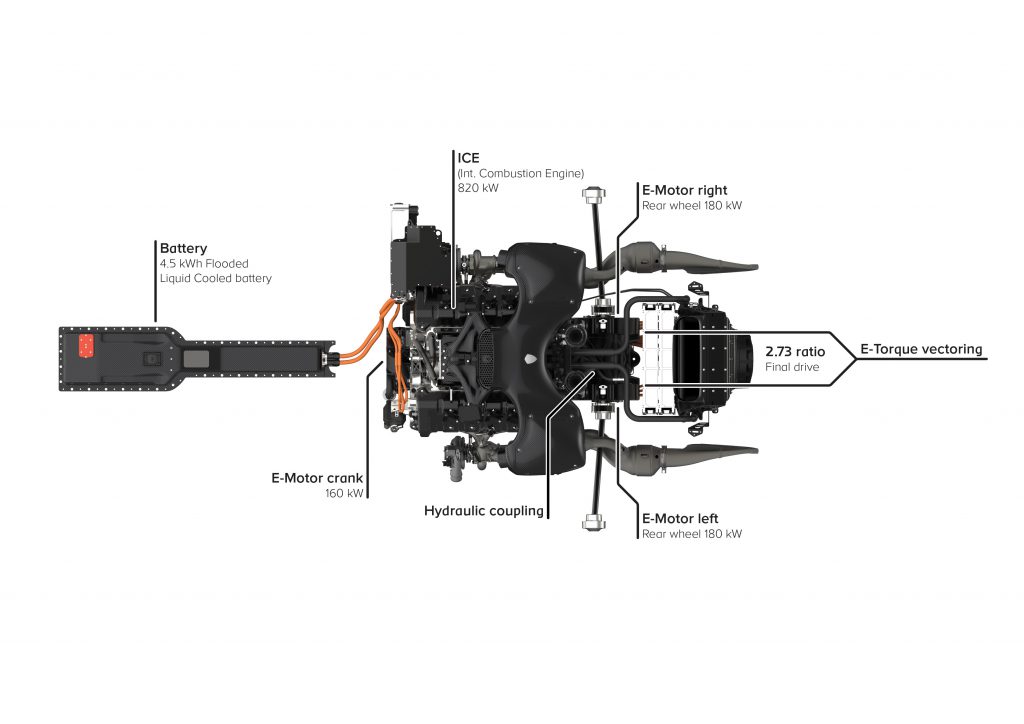

- Koenigsegg Direct Drive (KDD)
POWERTRAIN STATS
- 1100 Hp of combustion engine power on 91 octane DIN or 95 octane RON (a bit more on E85)
- 1250 Nm of combustion engine torque
- 700 Hp of electric propulsion
- 900 Nm of electric torque
- 4.5 kWh 800 Volt, flooded liquid cooled battery pack
COMBINED NUMBERS
- Over 1500 hp or 1.11 MW
- Over 2000 Nm of torque
- Dry weight 1420 kg
- 1,590 kg curb weight (including all liquids and full fuel tank)

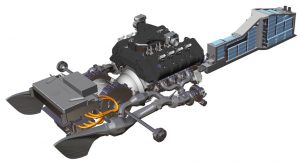

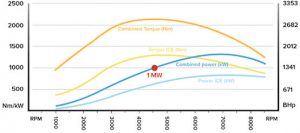

POWER DIAGRAM
Propulsion
COMBUSTION ENGINE – ICE
- Koenigsegg twin turbo aluminum 5,0L V8,
- 4 valves per cylinder, double overhead camshafts, dry sump lubrication
- Compression: 9.3:1
- Bore: 92 mm Stroke: 95.25 mm
- Twin ceramic ball bearing turbo chargers with Koenigsegg patented backpressure reduction system, 1.6 bar boost pressure
- Active hydraulic engine mounts
- Dry sump lubrication
- Carbon fiber intake manifold with optimized intake tracts
- Total engine weight: 189 kg
- Power output – Premium gasoline –
- 820kW (1100Hp) at 7800 rpm – redline at 8250 rpm
- Torque: 1000 Nm from 2700 to 6170 rpm
- Max torque – 1280 Nm at 4100 rpm
ELECTRIC DRIVE
- 870 Nm and 525 kW (700hp) with torque fill and torque vectoring functionality.
- 800V 4.5kWh liquid cooled battery pack; total weight 75kg.
TOTAL PROPULSION – ICE + ED
- 1,11 MW/1500 hp
PROPULSION MANAGEMENT
- Koenigsegg Engine Control Module
- (K-ECM) with full OBD II for both ICE and ED
Aerodynamics

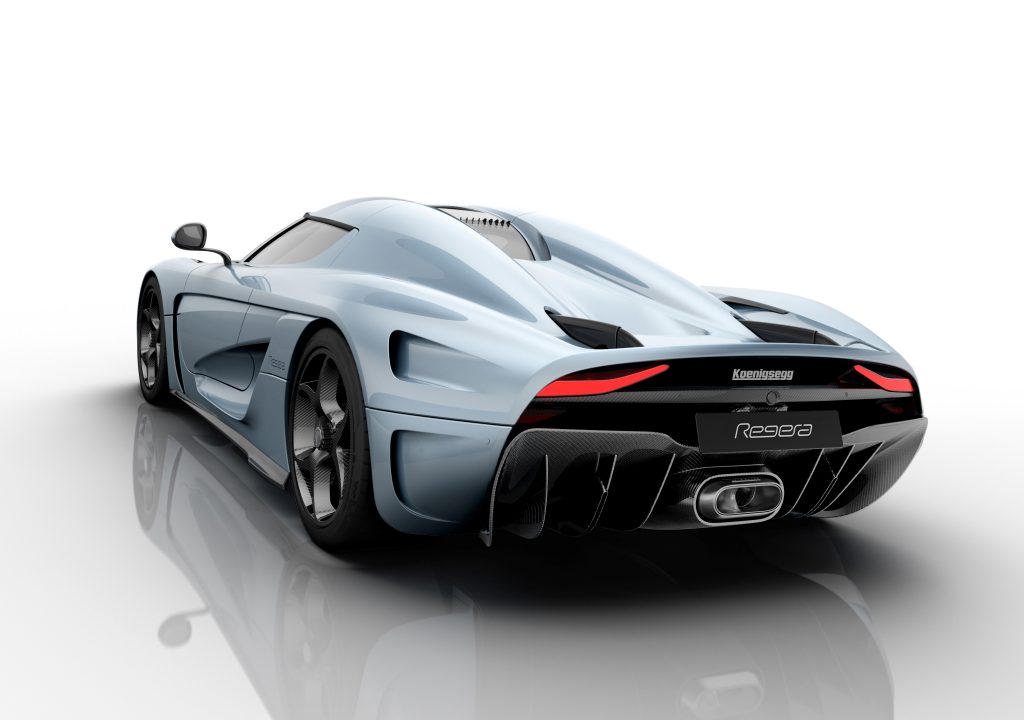

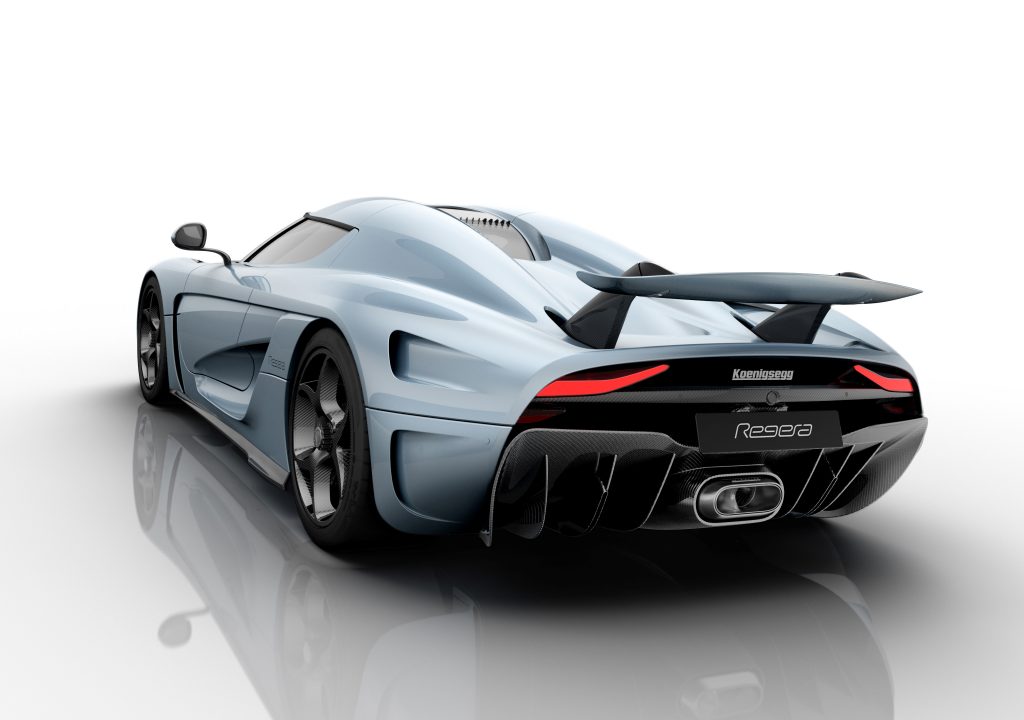

- Foldable active rear wing (top mounted)
- Active independent front flaps
- Active ride height front and rear
- Active damping
- Total down force at 250 km/h 450Kg
Chassis
- Carbon fiber with aluminum honeycomb, with centrally integrated fuel tank and battery storage
- Monocoque torsional rigidity: 65,000 Nm/degree
- Weight including tanks: 75 kg
- Electronically adjustable ride height, fully independent per wheel
- Fully machined aircraft aluminum uprights, with SKF LeMans specification
- 150mm angle contact ball bearings
- GKN hollow/gun-drilled drive shafts
- Koenigsegg Z-style progressive and lightweight anti-roll bars front and rear
BODY
- Two-door, two seater with removable structural hardtop stowable under the front hood
- Body made from pre-impregnated carbon fiber/kevlar and lightweight sandwich reinforcements
Handling
TRACTION CONTROL
- 3 settings Wet – Normal – Track
BRAKES
- Front: – Ventilated ceramic discs Ø397 mm, 40 mm wide 6-piston
- Rear: – Ventilated ceramic discs Ø380 mm, 34 mm wide 4-piston
- Koenigsegg calipers with ceramic pistons
- Koenigsegg calipers
- Power-assisted
Wheels and Tires
WHEELS
- Koenigsegg 2nd generation Aircore™ Superlight carbon fiber wheels with centre locking
- Front: 19” x 9.75”
- Rear: 20” x 12.5”
TIRES
- Dedicated Michelin Supersport
- Unidirectional with asymmetric thread pattern
- Front: 275/35 – 19” (Y)
- Rear: 345/30 – 20” (Y)
- Optional dedicated Michelin Cup2 tires
Dimensions
- Total length: 4560 mm
- Total width: 2050 mm
- Total height: 1110 mm
- Low speed ground clearance: 105 mm
- Track mode ground clearance: 85 mm
- Front lifting system activated: 150 mm
- Wheelbase: 2662 mm
- Fuel capacity: 82 litres
- Luggage compartment: 150 litres
- Dry weight 1420kg (Curb weight 1590 kg)
Equipment
- Smart airbags
- Carbon-ceramic brakes with Sport ABS, KES (stability)
- Active Chassis with hydraulic lifting system
COMFORT AND CONVENIENCE
- Detachable storable hardtop with lightweight roof
- Power windows, robotized and soft closing hoods and doors
- Adjustable pedals and steering column
- Leather interior with Regera style stitching

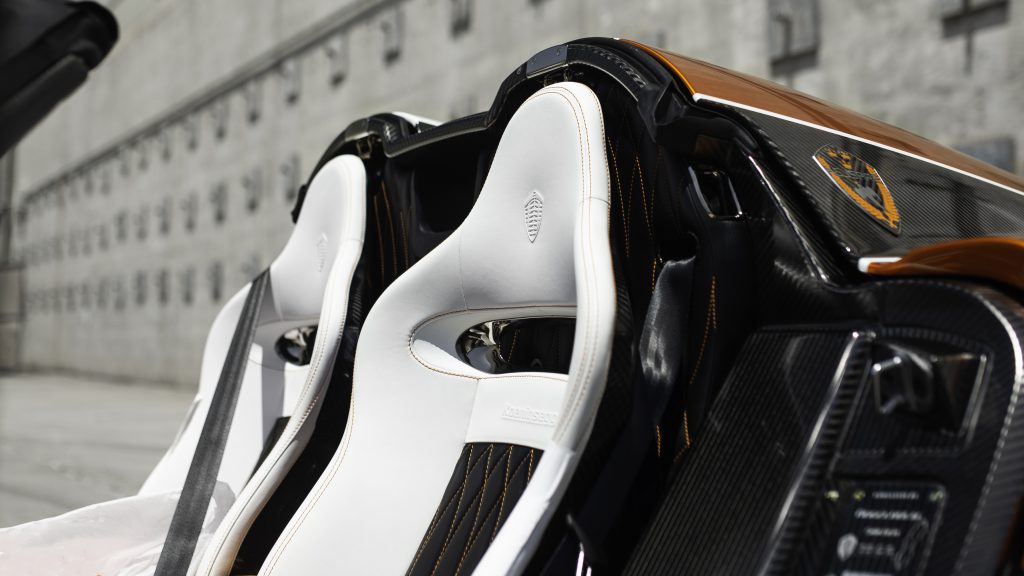

- Electronically 6-way adjustable carbon sport seats with memory foam
- Satnav
- LifePo4 battery
- MP3 player
- Apple CarPlay
- USB connection
- climate control
- digital warning and info system
- G sensor
- alarm
- Tyre monitoring system
- Leather carpets
- Roof storage bag
- Car cover
- Electric handbrake
- Power folding wing mirrors

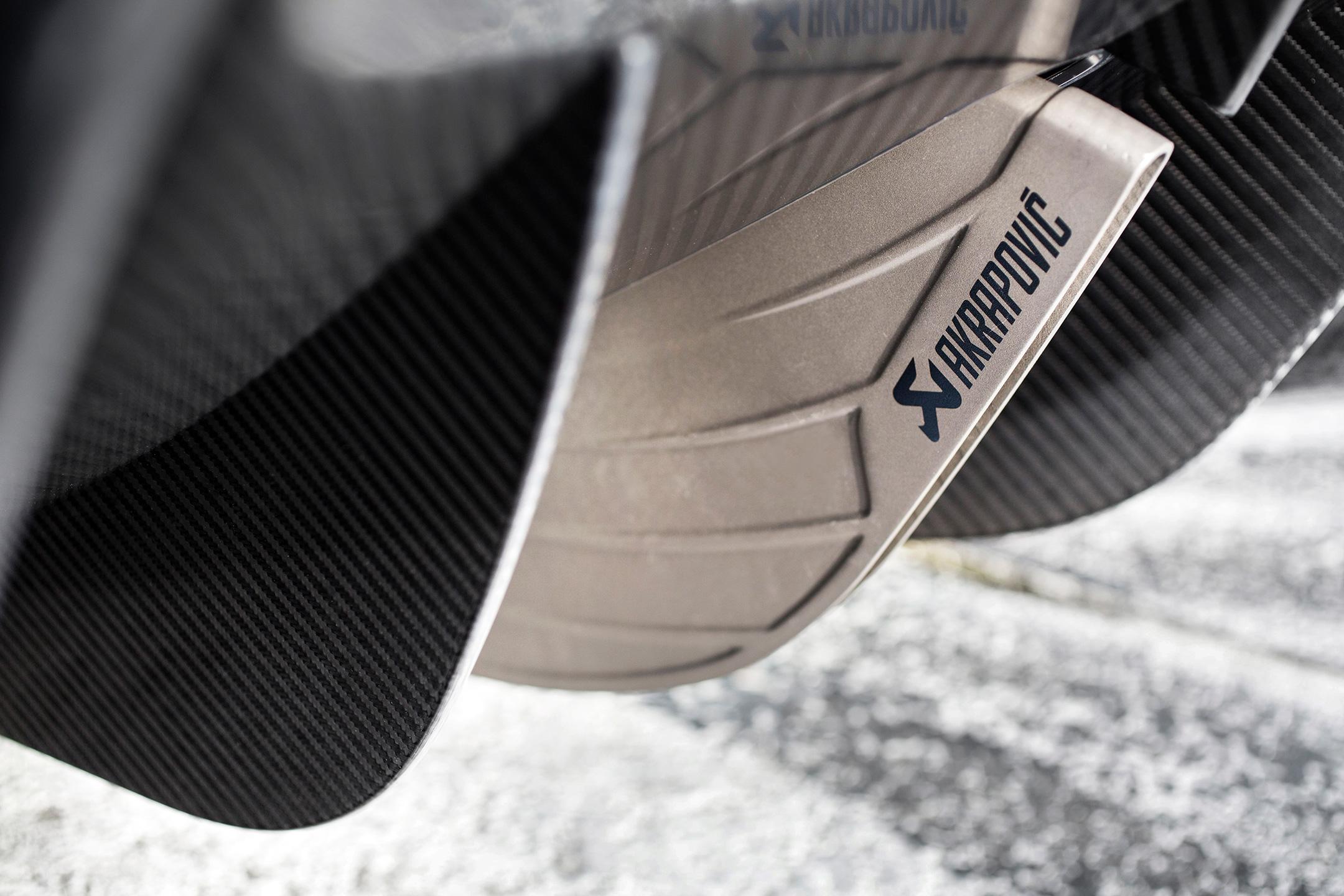

- Titanium exhaust system.
